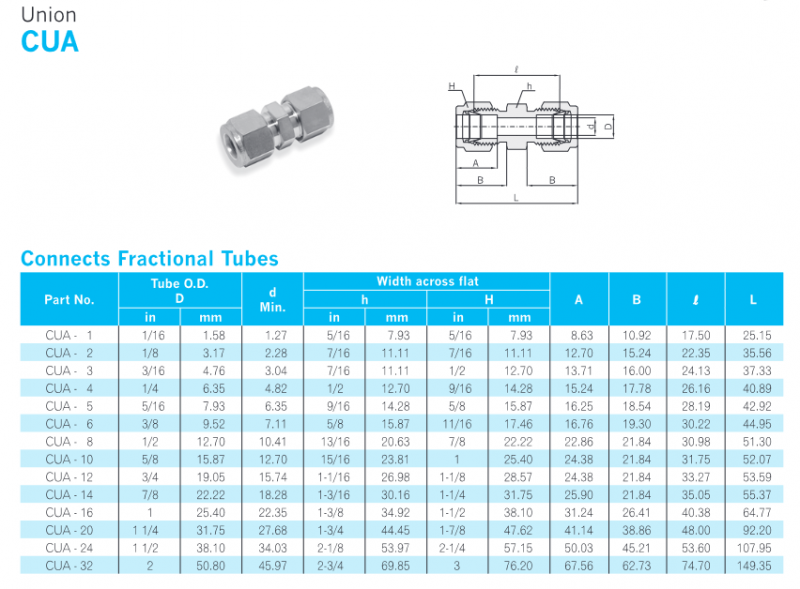

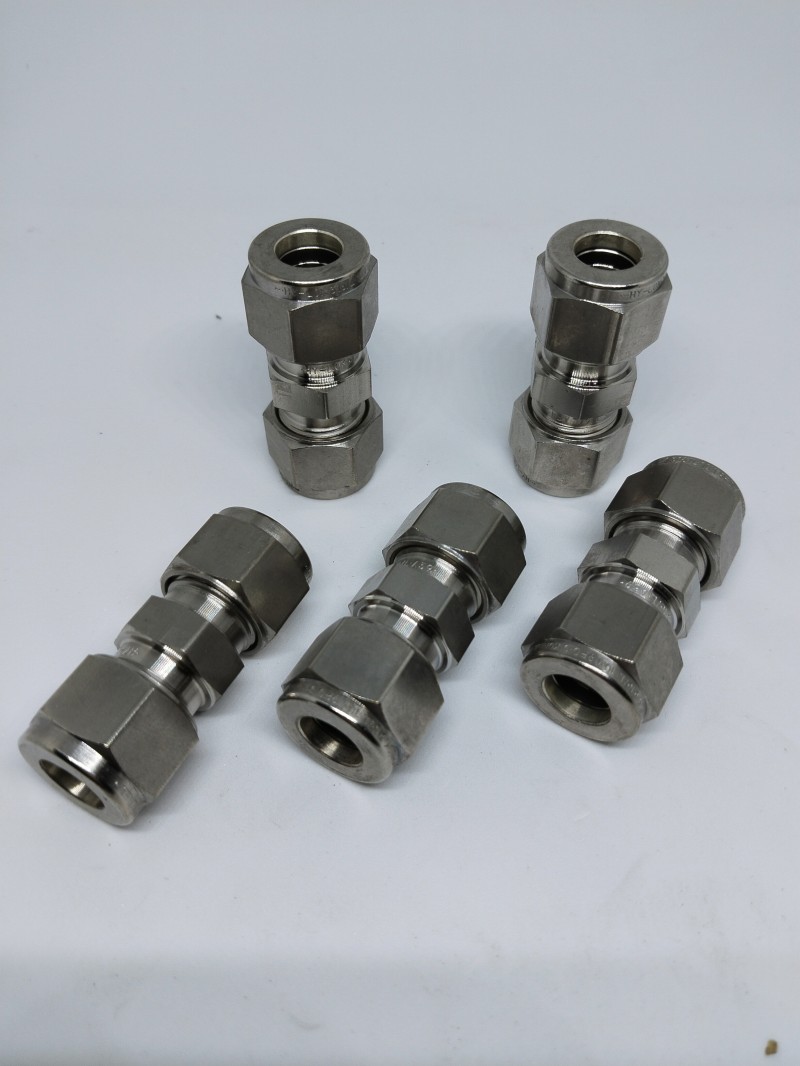

Fitting Union Connector CUA 15M SS316 HYLOK
Tube O.D. (mm) : 15
Dimension L (mm) : 52.00
Material : 316 Stainless Steel
Series : CUA
Dimension A (mm) : 24.4
Dimension B (mm) : 22.00
Pipe Thread : ISO Tapered|ISO Parallel|NPT|Unified Screw

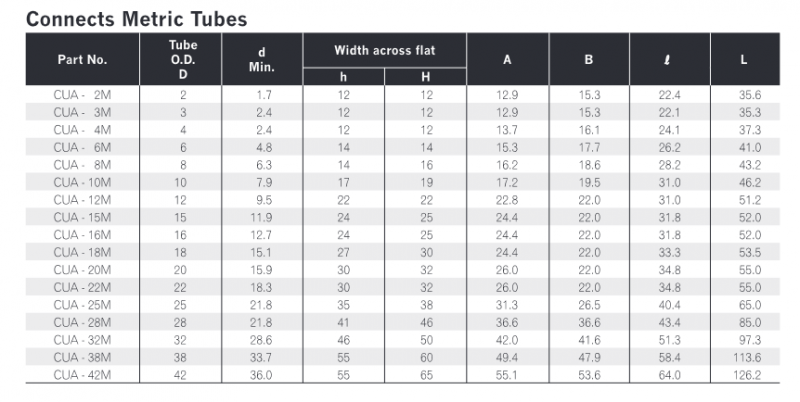

Type : Connects Metric Tubes
Width Across Flat (H) (mm) : 25.00
Width Across Flat h (mm) : 24.00
Dimension d (mm) : 11.90
